Vertical Jet
Availability : In Stock


No features available.

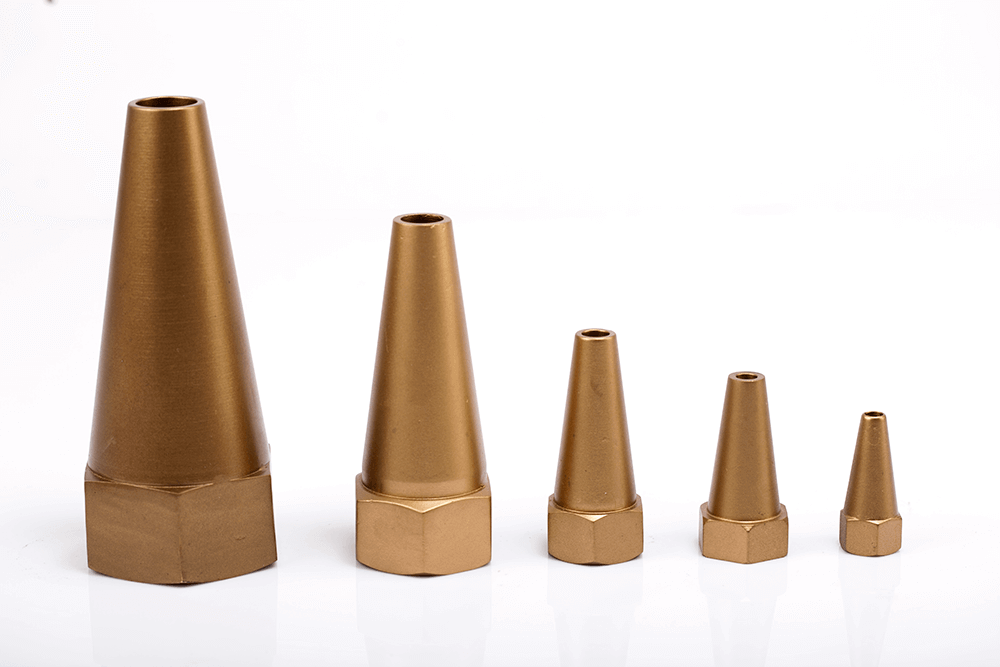

Description - Smooth bore single clear stream jet with a fixed direction, should be installed with an additional universal joint in case the directional adjustment is required. Can be installed vertically or at an angle using two 90-degree bends.

Sizes - Available from 20mm to 100mm inlets with varying bore sizes

MOC - Cast Bronze / Brass

Custom - Custom bore sizes and inlets are possible.

Type - Water level independent (no change in water effect with varying water level)

Dimensions

SAP Code Model A Inlet (B) Outlet
NOZ26.09 Vertical Jetb - 20 80mm 20mm 10mm
NOZ26.01 Vertical Jetb - 25 100mm 25mm 13mm
NOZ26.03 Vertical Jetb - 40 150mm 40mm 20mm
NOZ26.04 Vertical Jetb - 50 205mm 50mm 25mm
NOZ26.05 Vertical Jetb - 65 205mm 65mm 32mm
NOZ26.06 Vertical Jetb - 75 225mm 75mm 37mm
NOZ26.07 Vertical Jetb - 100 275mm 100mm 50mm

http://hydroplus.co.in/upload_content_image/fertical-jet.jpg

Flow Rate For Vertical Jet Nozzle

Model Vertical Jet - 20 Vertical Jet - 25 Vertical Jet - 40 Vertical Jet - 50 Vertical Jet - 65 Vertical Jet - 75 Vertical Jet - 100
Spray Ht.(in m) LPM LPM LPM LPM LPM LPM LPM
1.00 21 36 77
1.50 26 44 98
2.00 30 50 106 185 303 404 738
3.00 36 62 130 226 371 495 904
4.00 42 71 150 261 427 571 1043
6.00 51 87 185 320 524 700 1277
8.00     213 369 604 808 1475
10.00     238 412 675 904 1649
12.00       452 740 990 1806
15.00       506 827 1106 2020
18.00       554 906 1212 2212
20.00       584 955 1277 2332
25.00       652 1068 1428 2608
30.00       715 1170 1564 2856
40.00       825 1351 1806 3298
50.00       922 1510 2020 3688
