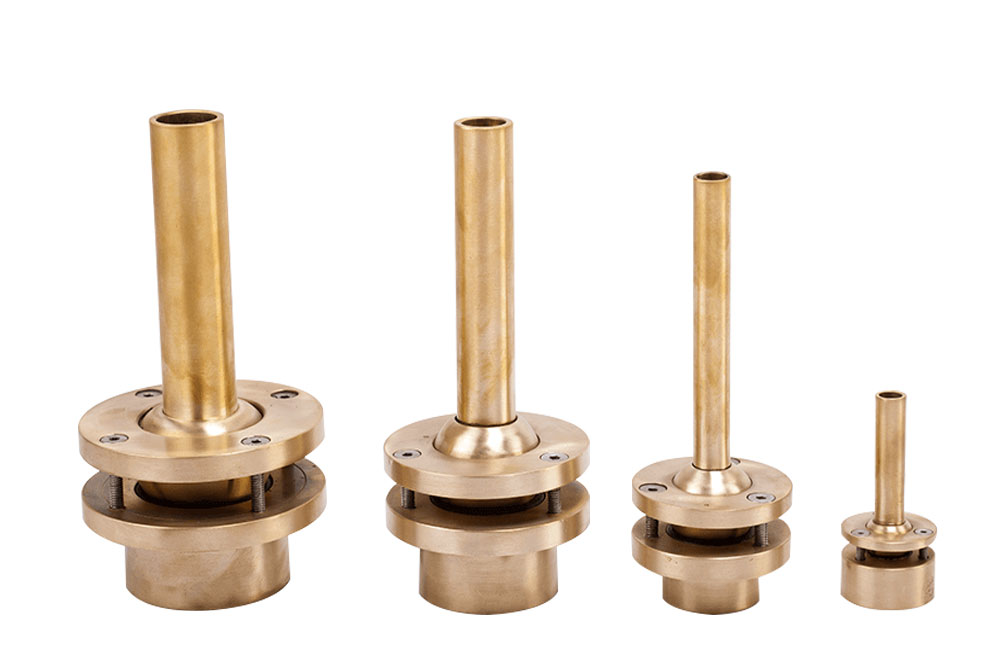

Description - Smooth bore single clear stream jet with adjustable direction. Normally used in groups to form a circle or straight line of jets.
Sizes - Available from 12mm to 50mm inlet sizes with a variety of bore sizes.
MOC - Cast Bronze & Brass with SS Fasteners
Custom - Custom inlets or threads are possible.
Type - Water level independent (no change in water effect with varying water level)

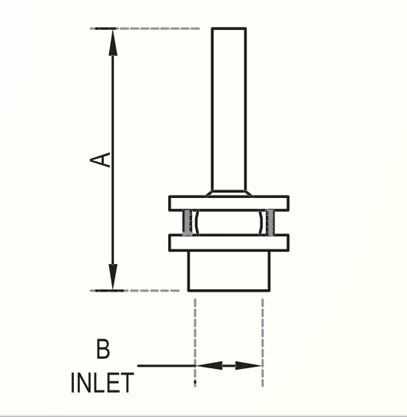

Dimensions
| Model | A | Inlet (B) | Outlet |
| Vertical Jet (AF-12-6) | 80mm | 12mm | 6mm |
| Vertical Jet (AF-20-8) | 80mm | 20mm | 8mm |
| Vertical Jet (AF-20-10) | 80mm | 20mm | 10mm |
| Vertical Jet (AF-25-12) | 170mm | 25mm | 12.7mm |
| Vertical Jet (AF-40-16) | 180mm | 40mm | 16mm |
| Vertical Jet (AF-40-19) | 180mm | 40mm | 19mm |
| Vertical Jet (AF-50-25) | 180mm | 50mm | 25mm |
Flow Rate For Vertical Jet AF Nozzle
| Model | Vertical Jet (AF-12-6) |
Vertical Jet (AF-20-8) |
Vertical Jet AF-20-10) |
Vertical Jet (AF-25-12) |
Vertical Jet AF-40-16) |
Vertical Jet (AF-40-19) |
Vertical Jet (AF-50-25) |
| Spray Ht.(in m) | LPM | LPM | LPM | LPM | LPM | LPM | LPM |
| 1.00 | 10 | 14 | 21 | 35 | 54 | 77 | |
| 1.50 | 11 | 16 | 26 | 43 | 66 | 98 | |
| 2.00 | 12 | 19 | 30 | 48 | 76 | 106 | 185 |
| 3.00 | 13 | 24 | 36 | 59 | 92 | 130 | 226 |
| 4.00 | 14 | 27 | 42 | 68 | 106 | 150 | 261 |
| 6.00 | 51 | 83 | 130 | 185 | 320 | ||
| 8.00 | 151 | 213 | 369 | ||||
| 10.00 | 169 | 238 | 412 | ||||
| 12.00 | 452 | ||||||
| 15.00 | 506 | ||||||
| 18.00 | 554 | ||||||
| 20.00 | 584 | ||||||
| 25.00 | 652 | ||||||
| 30.00 | 715 | ||||||
| 40.00 | 825 | ||||||
| 50.00 | 922 |
