Revolving Jet
Availability : In Stock


No features available.

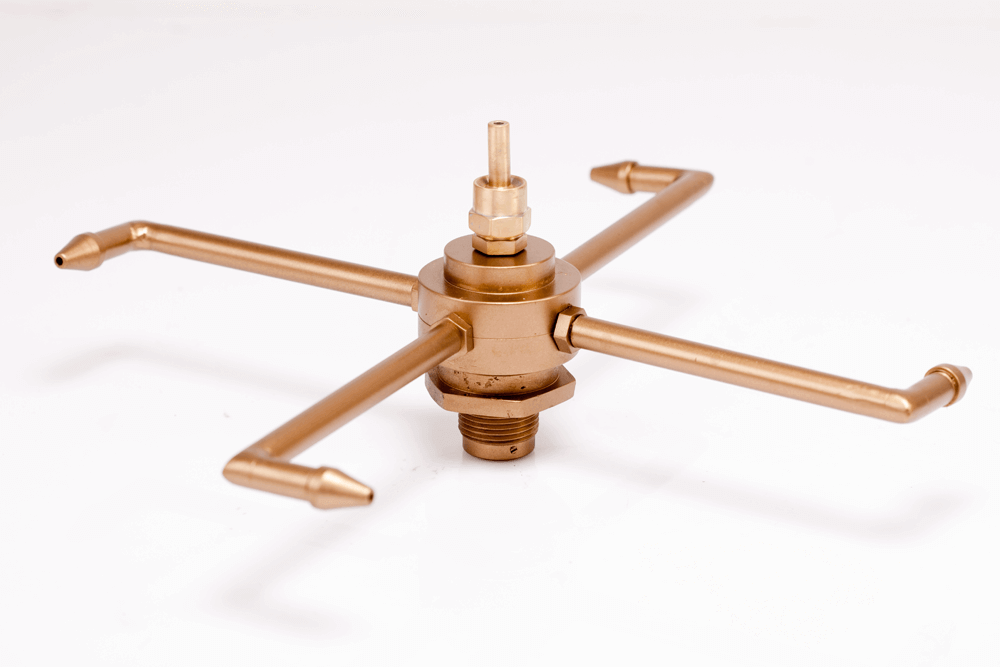

Description - The Revolving Jet is divided into two parts the lower revolving mechanism with 4 arms which uses water pressure to revolve the nozzle and the upper part which consists of the nozzle and can be either a single Crown nozzle / Vertical jet AF or a finger jet or 4 spiral arms, each type creating a different visual effect while revolving.

Sizes - Available with a 25mm or 50mm inlet and crown, finger or 4 spiral arms mounted on the revolving mechanism.

MOC - Cast Bronze & Machined Brass.

Custom - Custom bore sizes for the nozzle are possible.

Type - Water level independent (no change in water effect with varying water level)

Dimensions

SAP Code Model A Inlet (B)
NOZ24.01 Revolving Crown Jet 250mm 25mm
NOZ24.02 Revolving Finger Jet 250mm 25mm
NOZ37.01 Revolving Spiral Jet 250mm 50mm

http://hydroplus.co.in/upload_content_image/revolving-jet.jpg

Flow Rate For Revolving Jet

Model Revolving Crown Jet Revolving Finger Jet Revolving Spiral Jet
Spray Ht. (in m) LPM LPM LPM
1.00   80
1.50   87
2.00   93 148
3.00 87   172
4.00 96   196
6.00 111   232
