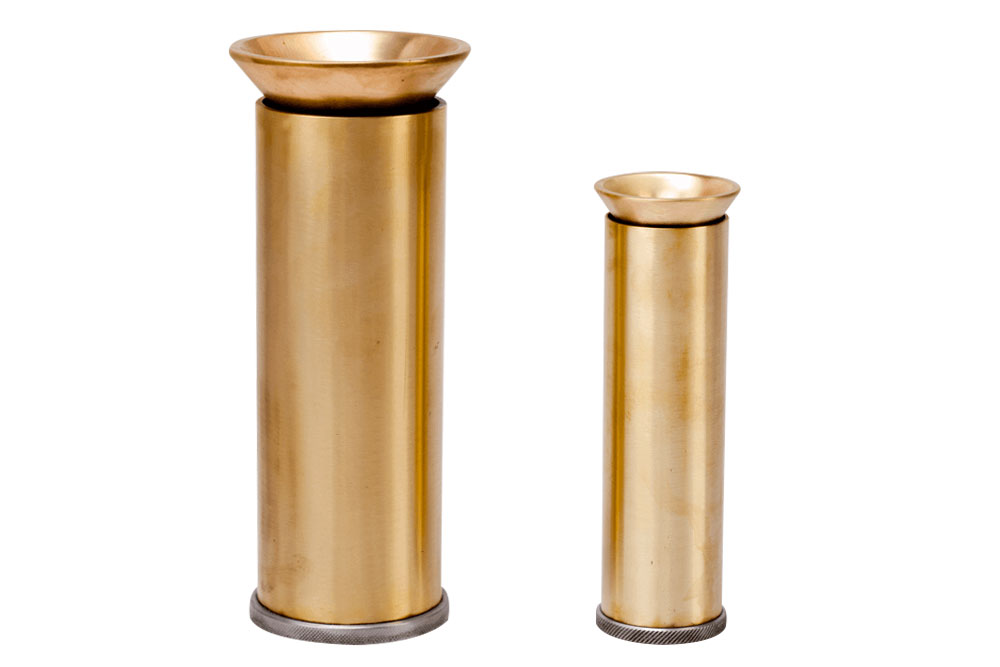

Lily Nozzle
Availability : In Stock


No features available.

Description - Produces a clear sheet of water similar to the bell nozzle but in a flat cone shape. Dia of the cone can be adjusted by turning the top of the nozzle clockwise or anticlockwise.

Sizes - Available from 25mm to 50mm inlet sizes and 200mm to 300mm length with pipe dia varying from 50mm to 75mm.

MOC - Cast Bronze & Brass Custom -

Custom nozzle heights are possible.

Type - Water level independent (no change in water effect with varying water level)

Dimensions

SAP Code Model A Inlet (B)
NOZ20.02 Lily 25/50/200 200mm 25mm
NOZ20.03 Lily 25/50/250 250mm 25mm
NOZ20.04 Lily 40/75/250 250mm 40mm
NOZ20.05 Lily 50/75/300 300mm 50mm

http://hydroplus.co.in/upload_content_image/lily-jet.jpg

Flo Rate For Lily Nozzle

Model Lily 25/50/200 Lily 25/50/250 Lily 40/75/250 Lily 50/75/300
Spread dia (in m) LPM LPM LPM LPM
1.00 24
1.50 29 29
2.00 33 33 58 121
3.00 41 41 72 147
4.00 47 47 83 170
6.00 57 57 102 208
8.00     117 240
10.00     131 268
12.00     106 294
