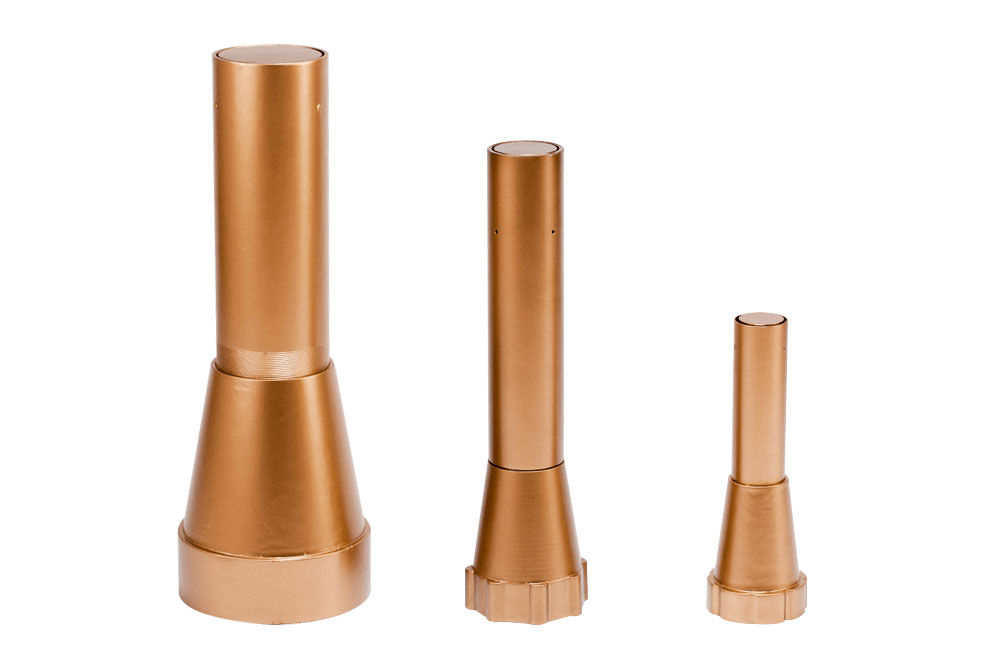

Hollow Jet
Availability : In Stock


No features available.

Description - Similar to the Vertical jet the Hollow jet produces a single clear stream jet except that unlike the Vertical jet the jet of water produced by this jet is not solid due to the design of the jet. This helps reduce the overall pumping capacity required to produce the desired effect. This jet is only used for bore sizes in excess of 20mm.

Sizes - Available with 40mm to 100mm inlet sizes and varying bore sizes.

MOC - Cast Aluminum, Cast Bronze & Brass.

Custom - Custom bore sizes are possible.

Type - Water level independent (no change in water effect with varying water level)

Dimensions

SAP Code Model A Inlet (B)
NOZ18.04 Hollow Jet (40/20) 250mm 40mm
NOZ18.03 Hollow Jet (50/25) 300mm 50mm
NOZ18.02 Hollow Jet (75/50) 305mm 75mm
NOZ18.01 Hollow Jet (100/75) 470mm 100mm

http://hydroplus.co.in/upload_content_image/hollow-jet.jpg

Flow Rate Foe Hollow Jet Nozzle

Model Hollow Jet (20/40) Hollow Jet (50/25) Hollow Jet (75/50) Hollow Jet (100/75)
Spray Ht.(in m) LPM LPM LPM LPM
3.00 116 145
4.00 133 167
6.00 163 205 406
8.00 188 236 472
10.00   264 528
12.00     578
15.00     647 970
18.00     708 1062
20.00     746 1084
25.00       1052
30.00       1371
40.00       1583
50.00       1770
