Geyser Jet
Availability : In Stock


No features available.

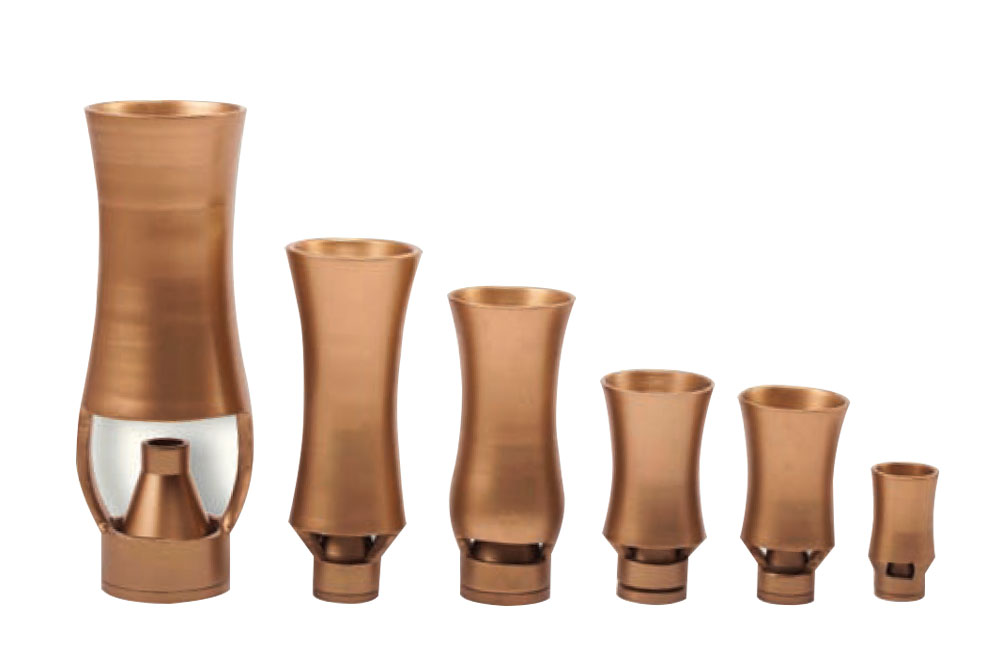

Description - One of the most widely used nozzle, produces a thick foaming mass of water suitable for small and medium jet heights.

Sizes - Available from 20mm to 50mm inlet sizes with a variety of construction materials.

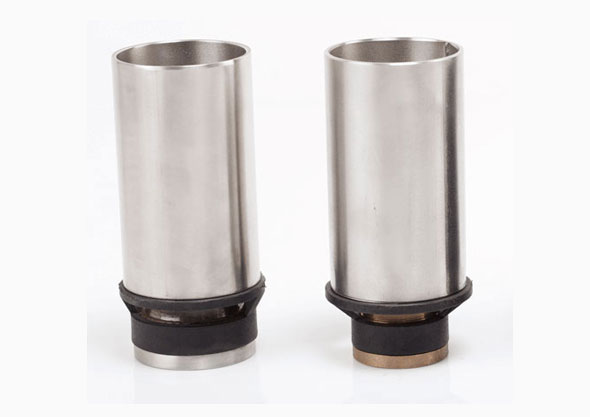

MOC - Nozzle is available in Cast Bronze, or SS and Noryl or Noryl and Bronze.

Custom - Custom bore sizes are possible.

Type - Water level-dependent (Water effect changes with change in water level over the nozzle outlet.)

Dimensions

SAP Code Model A Inlet (B)
NOZ16.10 Geyser Jet 20/80 80mm 20mm
NOZ16.01 Geyser Jet 19/130 130mm 19mm
NOZ16.02 Geyser Jet 25/135 135mm 25mm
NOZ16.05 Geyser Jet 40/190 190mm 40mm
NOZ16.06 Geyser Jet 50/300 300mm 50mm
NOZ16.11 Geyser Jet 25N 170mm 25mm
NOZ16.12 Geyser Jet 40N 170mm 40mm
NOZ16.13 Geyser Jet 25S 165mm 25mm
NOZ16.14 Geyser Jet 40S 165mm 40mm



http://hydroplus.co.in/upload_content_image/Gayser-Jet.jpg

Flow Rate For Geyser Jet Nozzle

Model Geyser Jet 20/80 Geyser Jet 19/130 Geyser Jet 25/135, 25N, 25S Geyser Jet 40/190, 40N, 40S Geyser Jet 50/300
Spray Ht. (in m) LPM LPM LPM LPM LPM
0.15 21
0.30 30
0.50 36 45 75 95
1.00 51 63 108 108
1.20   69 117 126
1.50   78 132 144 280
2.00     150 162 324
2.50       180 362
3.00         396
