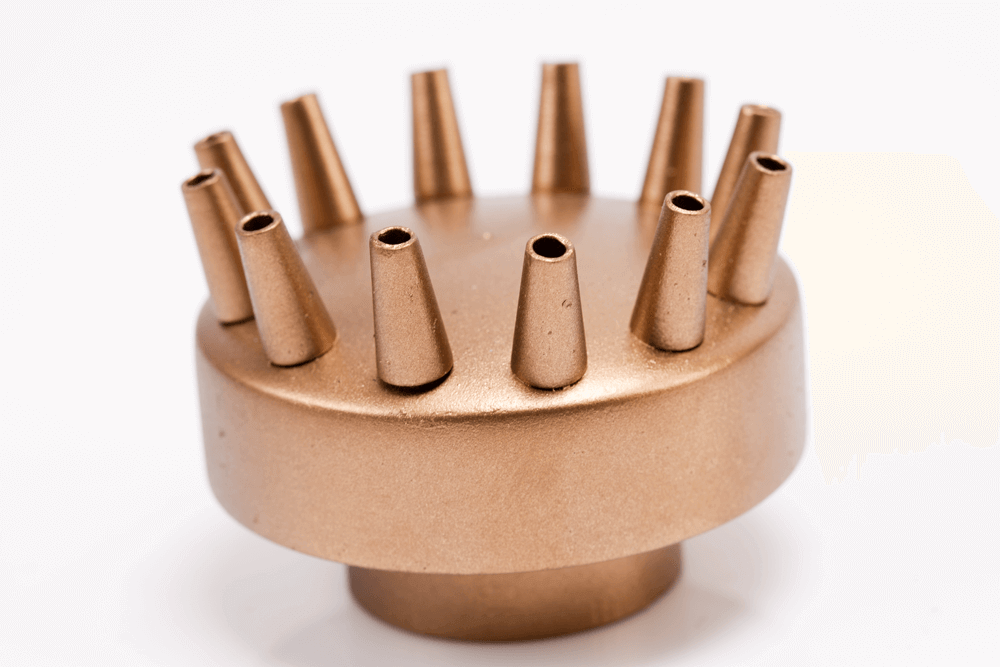

Flower Jet
Availability : In Stock


No features available.

Description - Produces a single ring of fine jets of water flowing outwards from a central nozzle.

Sizes - Available from 25mm to 50mm inlets with no of outlets varying from 12 to 36

MOC - Cast Bronze & Machined Brass.

Custom - No of outlets on the nozzle can be customized.

Type - Water level independent (no change in water effect with varying water level)

Dimensions

SAP Code Model A Inlet (B)
NOZ14.01 Flower Jet 25/12 140mm 25mm
NOZ14.02 Flower Jet 32/24 140mm 32mm
NOZ14.03 Flower Jet 50/36 140mm 50mm

http://hydroplus.co.in/upload_content_image/Flower-jet.jpg

Flow Rate For Flower Jet

Model Flower Jet 25/12 Flower Jet 32/24 Flower Jet 50/36
Spray Ht.(in m) LPM LPM LPM
1.00 48 96 144
1.50 54 108 162
2.00 60 120 180
3.00 72 144 216
4.00 84 168 252
6.00 108 216 324
