Finger Jet
Availability : In Stock


No features available.

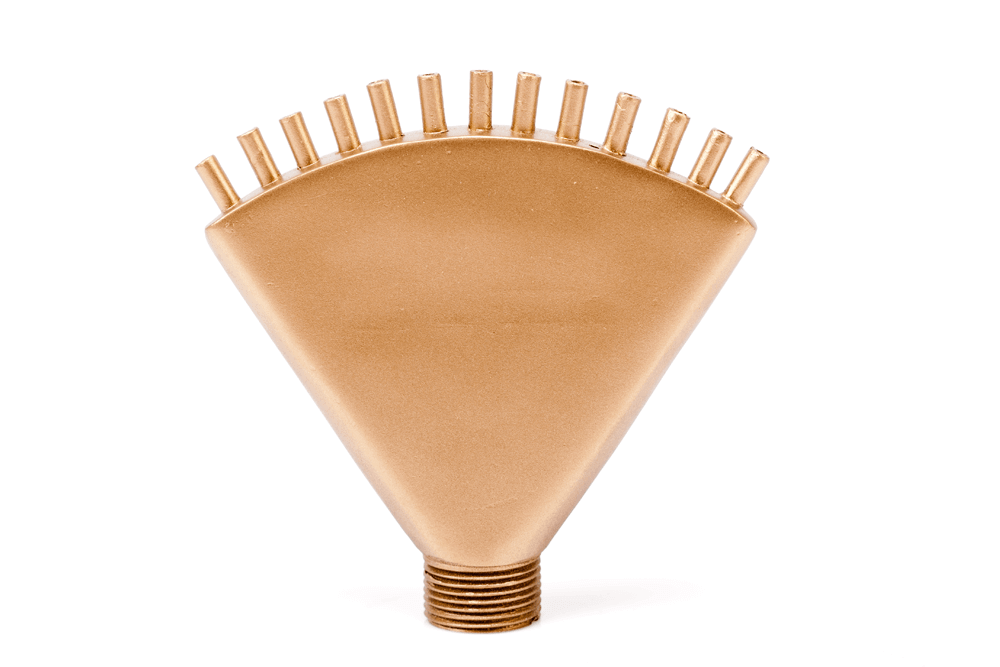

Description - Finger jet nozzles produce a series of clear stream jets radiating outwards. Can be installed vertically or at an angle using two 90-degree bends.

Sizes - Available with 19mm and 25mm inlets.

MOC - Cast Bronze body with brass or Copper jets.

Custom - The no of outlets on the jet can be customized.

Type - Water level independent (no change in water effect with varying water level)

Dimensions

SAP Code Model A Inlet (B)
NOZ12.03 Finger Jet - 19 160mm 19mm
NOZ12.04 Finger Jet - 25 160mm 25mm

http://hydroplus.co.in/upload_content_image/Finger-Jet.jpg

Flow Rate For Finger Jet

Model   Finger Jet - 19 Finger Jet - 25
Spray Ht. (in m) Spray Width (in m) LPM LPM
1.00 5.00 44 52
1.20 6.00 47 56
1.50 7.00 50 59
1.80 8.00 53 62
