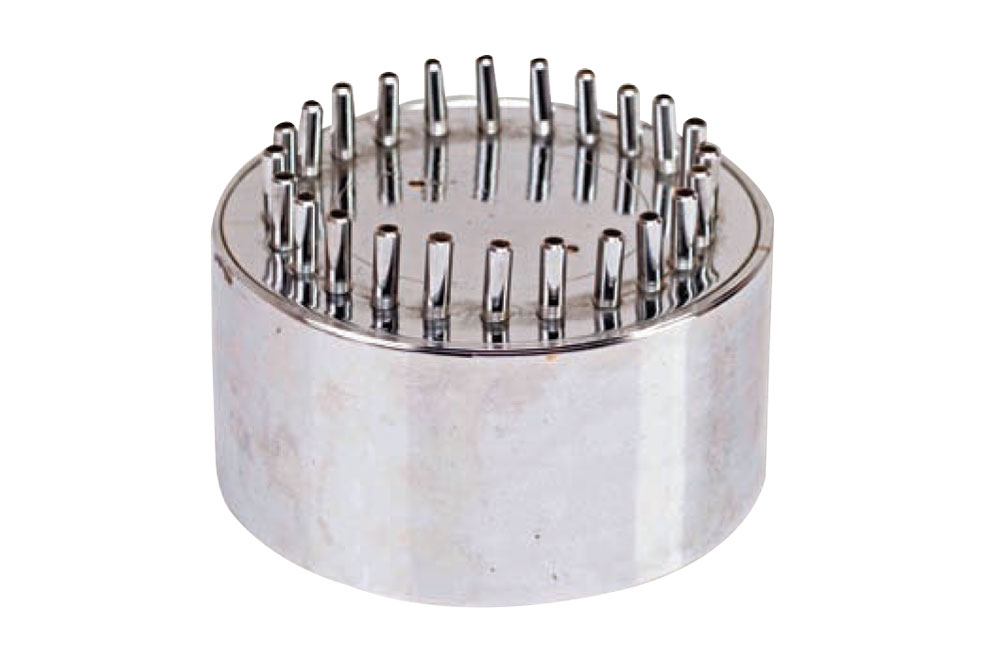

Culomn Jet
Availability : In Stock


No features available.

Description - Consists of a number of fine bore jets placed on a central manifold in single or multiple circles to create a thick column of water.

Sizes - Available from 40mm to 100mm inlet sizes.

MOC - Cast Bronze & Machined Brass / Copper

Type - Water level independent (no change in water effect with varying water level)

Dimensions

SAP Code Model A Inlet (B)
NOZ6.06 Column Jet 40/1/24 130 mm 40 mm
NOZ6.02 Column Jet 50/1/36 130 mm 50 mm
NOZ6.03 Column Jet 65/2/42 130 mm 65 mm
NOZ6.04 Column Jet 100/2/48 130 mm 100 mm

http://hydroplus.co.in/upload_content_image/Column-Jet.jpg

Flow Rate For Column Jet

Model Column Jet 40/1/24 Column Jet 50/1/36 Column Jet 65/2/42 Column Jet 100/2/48
Spray Ht.(in m) LPM LPM LPM LPM
1.00 96 144 168 192
2.00 120 180 210 240
3.00 144 216 252 288
4.00 168 252 294 336
6.00 216 324 378 432
