FEATURES
•Compact and lightweight
•UV resistant tank
•heavy duty ring-lock lid easy cleaning and replacement of the cartridge elements
•Screw type air bleeder for easy removal of trapped air inside the filter tank
•High-quality oil filled pressure gauge for easy inspection of the operation pressure
•Application to domestic swimming pool & spa
FUNCTIONS
Maximum Working Pressure 250kPa /36psi /2.5bar
Maximum Water Temperature 40ºC (100ºF)

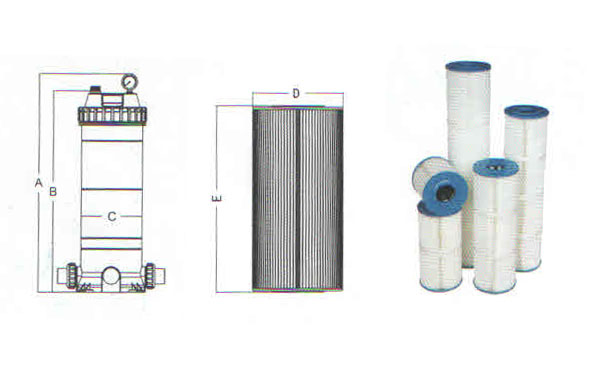

PRODUCT DIMENSION
| Model No | A mm | B mm | C mm | D mm | E mm | Micron (µm) |
| CF25-CE | 445 | 387 | 225 | 183 | 184.5 | <15 |
| CF50-CE | 625 | 567 | 225 | 183 | 364.5 | <15 |
| CF75-CE | 805 | 747 | 225 | 183 | 544.5 | <15 |
| CF100-CE | 985 | 927 | 225 | 183 | 724.5 | <15 |
| CF150-CE | 1165 | 1107 | 225 | 183 | 904.5 | <15 |
| CF200-CE | 1345 | 1287 | 225 | 183 | 1091.0 | <15 |
| Code | Model No | Filter Area(m2) | Valve Connection | Max Flow Rate |
| 88060101 | CF25 | 2.25 | 1.5inch | 50mm | 92|pm | 5.5m3/h |
| 88060102 | CF50 | 4.63 | 1.5inch | 50mm | 190|pm | 11.4m3/h |
| 88060103 | CF75 | 7.00 | 1.5inch | 50mm | 283|pm | 17.0m3/h |
| 88060104 | CF100 | 9.40 | 2.0inch | 63mm | 382|pm | 22.9m3/h |
| 88060105 | CF150 | 13.72 | 2.0inch | 63mm | 555|pm | 33.4m3/h |
| 88060106 | CF200 | 16.82 | 2.0inch | 63mm | 680|pm | 40.9m3/h |
