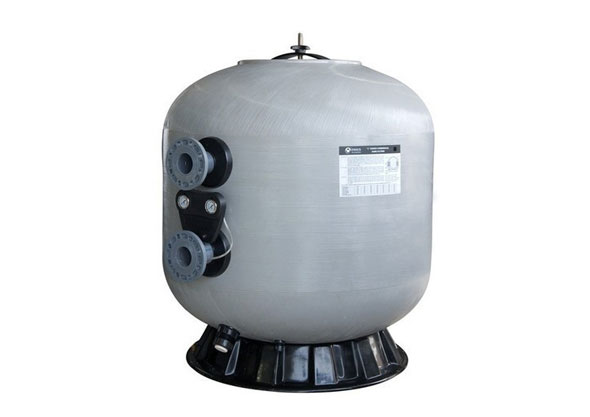

"NL" Series commercial sand filter satisfies the demand of different water treatment including pools installed within-floor cleaning system, Spa, fountain, and public swimming pool.

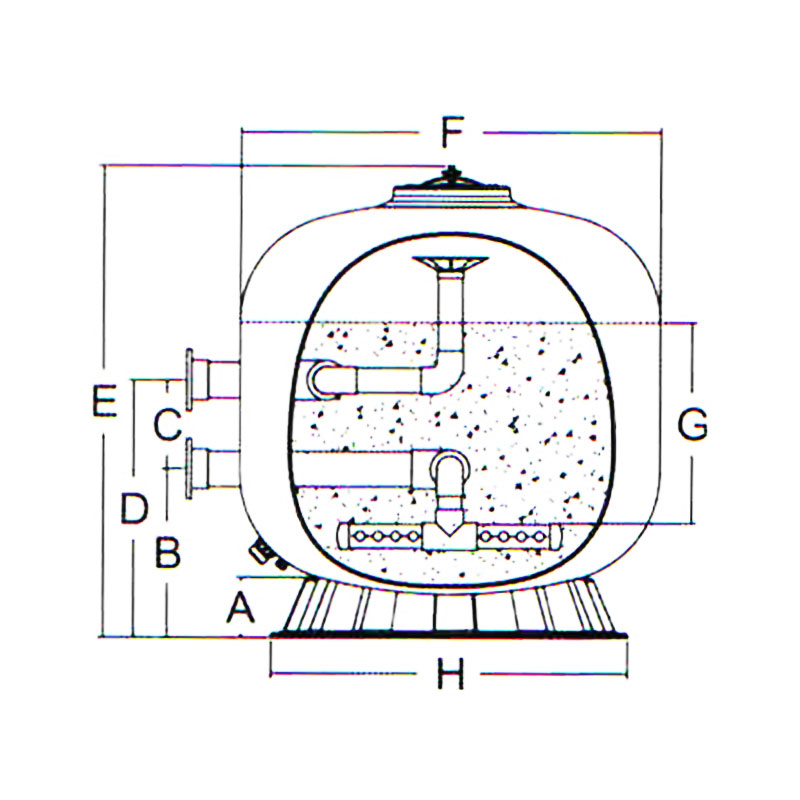

PRODUCT DIMENSION
| Model No | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm |
| NL1200 | 170 | 565 | 350 | 915 | 1410 | 1190 | 700 | 995 |
| NL1400 | 190 | 565 | 350 | 915 | 1570 | 1400 | 760 | 1220 |
| NL1600 | 200 | 650 | 350 | 1000 | 1740 | 1620 | 910 | 1365 |
| NL1800 | 220 | 690 | 415 | 1105 | 2040 | 1790 | 990 | 1630 |
| NL2000 | 220 | 770 | 415 | 1185 | 2210 | 1945 | 1040 | 1630 |
| NL2300 | 230 | 950 | 550 | 1500 | 2510 | 2375 | 1260 | 1800 |
| NL2500 | 230 | 1050 | 550 | 1600 | 2670 | 2495 | 1390 | 1800 |
| Code 2.5Bar | Code 4.0Bar | Model No | Filter Area(m2) | Valve Connections | Max Flow Rate | Sand (Kg)0.5-0.8mm | Gravel(Kg)1-2mm |
| 88012813 | 88013213 | NL1200 | 1.11 | 30inch | 90mm | 920|pm | 55.20m2/h | 900 | 300 |
| 88012814 | 88013214 | NL1400 | 1.54 | 4.0inch | 110mm | 1280|pm | 76.80m2/h | 1350 | 450 |
| 88012815 | 88013215 | NL1600 | 2.06 | 4.0inch | 110mm | 1700|pm | 102.0m2/h | 2300 | 700 |
| 88012816 | 80013216 | NL1800 | 2.52 | 6.0inch | 160mm | 2080|pm | 124.8m2/h | 2900 | 900 |
| 88012817 | 88013217 | NL2000 | 2.97 | 6.0inch | 160mm | 2450|pm | 147.0m2/h | 4000 | 1100 |
| 88012818 | 88013218 | NL2300 | 4.43 | 8.0inch | 200mm | 3650|pm | 219.0m2/h | 6000 | 1600 |
| 88012819 | 88013219 | NL2500 | 4.89 | 8.0inch | 200mm | 4000|pm | 240.0m2/h | 6700 | 1800 |
